Project Description

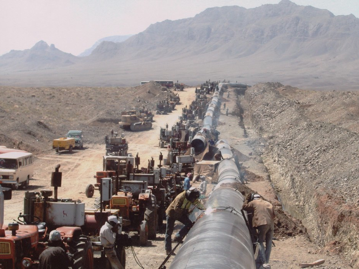

The project includes complete civil and mechanical work and full commissioning related to construction of 509 Km high pressure gas transmission of 5LX70 steel polyethylene coated pipeline with the wall thickness varying from 0.780 to 1.125 inches.  The project includes:

►450 river, road, flood way and stream crossings

►5 launching and receiving trap stations

►20 line brake valve stations

► Installation of fiber optic cable

►Cathodic protection system including CP stations, test points and line markers

Except for the line pipe, fittings and valves which were supplied by the client, Arvin Engineering was responsible for provision of consumables, welding electrodes, coating materials, rock shield, CP. materials & equipment and all civil materials.
